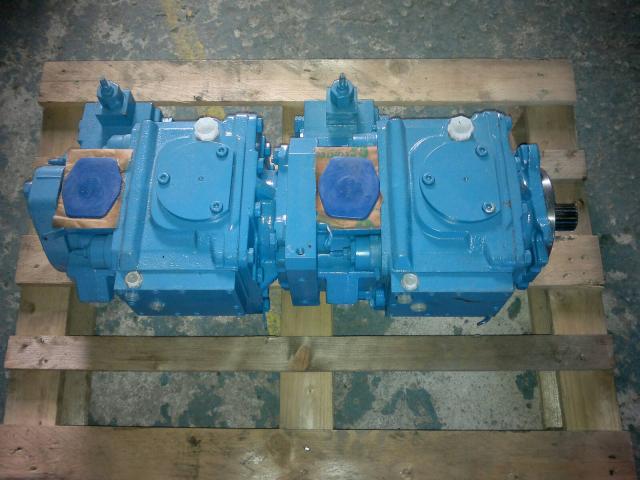

Tandem of axial piston pumps for closed circuit
02.02.2014 18:31
- 52cc+52cc
- direct hydraulic control
- cw (R) rotation
- 21 - teeth shaft
- dimension of high pressure ports for 6000 PSI
- preset charge pressure on 1,3 MPa
- connection for through drive: SAE B 13 teeth coupling 2 1/2 - 13 UNC - 2B flang
- reliefs are present on 42 MPa in channels A and B nastavené na 42 MPa
- preplachový ventil nastavený na 1,1 MPa
